LineaSlide 640

Minimal Sliding Thermal System

We offer a comprehensive range of Minimal Sliding systems for every market and type of building. The range starts from Minimal Slide cold systems accommodating 8mm of single glass and spans all the way to Minimal Slide thermal systems accommodating triple glass 46mm. All common floor typologies such as Submerged, Semi-submerged, Hovering, T slot and infinity floor finish are available as standard. On the ceiling there are three available typologies, namely Semi submerged, T slot and infinity Ceiling. The maximum sash size can span up to 6 meters in height and 4 meters in width. The weight capability can reach 1200Kg per sash. Depending on the wind load, suitable reinforcement profiles are available to withstand the deflection load. All minimal systems feature slim sliding profiles that are a largely hidden inside the frames. The central mullion ranges from 16mm to 24mm with and without glazing bits. Lift & Slide Minimal sliding systems are also available with a lifting capability of 600Kg per sash. Electric minimal sliding is also available to cater for horizontal movement. In addition, we can also provide solutions for electric locking and electric lifting for Lift & Slide Minimal systems.
Technical characteristics
Frame Height, Vertical42 mm
Frame Height, Horizontal Bottom57 / 67 mm
Frame Height, Horizontal Top52 / 60 mm
Frame Width

74 / 157 / 240 / 324  mm

Tile Insert

≥20 mm

Floor Typology

Step, Submerged
Riding TypologyBlade
Sash Height, Vertical22 / 30 mm
Sash Height, Horizontal29 mm
Sash Width59 mm
Centre Mullion Visible Height22 mm
Max. Weight per Sash1200 Kg
Max. Sash Width4000 mm
Max. Sash Height6000 mm
Glazing Width Possibilities36-38, 44-46 mm
Glazing typeGlazing bit + Bonding
Maximum Locking Points6
Sealing TypeBrush with Cloth + Q-Lon
Performances
Fabrication Thermal Transmittance
EN ISO 10077-2 (Uw)
≥0.9 W/(m2K)
7015
1013
1015
5010
5023
5024
6003
6005
6009
6021
7005
7006
9010
7016
7022
7024
7030
7035
7037
7038
7040
8014
9005
9006
9007
1019
5010
6009
7012
7016
7030
7039
7042
8017
9016
Golden Oak
Light Oak
Nussbaum
Pear Tree
Pine
Red Cherry
Walnut
Wenge
FLOOR
TYPOLOGIES
RIDING
TYPOLOGIES
HOOK
DESIGN
CONSTRUCTION
TYPOLOGIES

Step, Submerged

Pipe, Submerged

Blade

Glazing Bit

Max. Sash Width (W) 4000 mm Max. Sash Height (H) 6000 mm

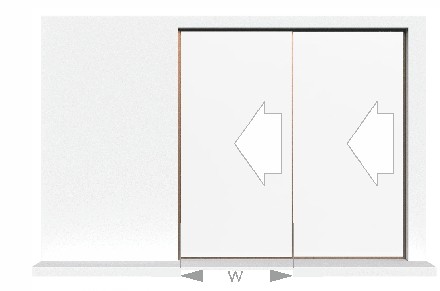

Pocket - 1, 2, 3, 4 Sashes

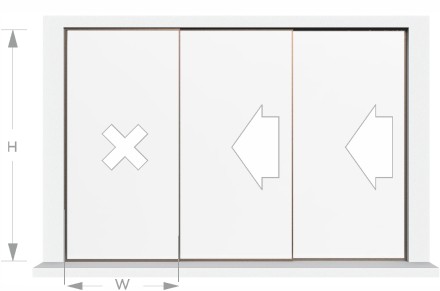

Fix&Sliding - 2, 3, 4 Sashes

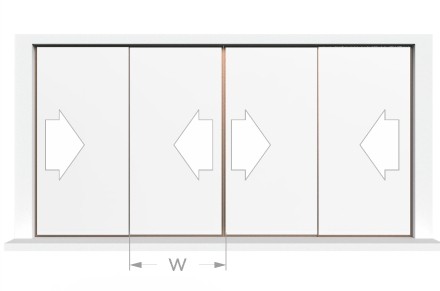

Sliding - 2, 3, 4 Sashes

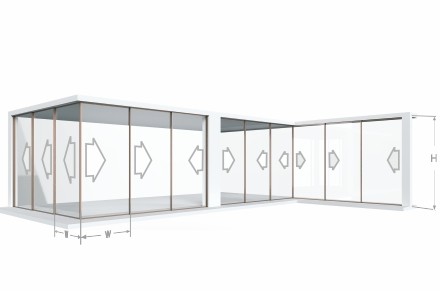

Corner Inward / Outward openning
4, 5, 6, 7, 8 Sashes

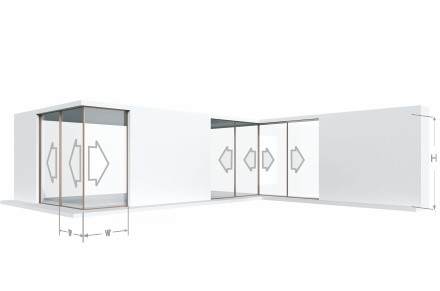

Corner Pocket Inward / Outward
1, 2, 3, 4, 5, 6, 7, 8 Sashes
